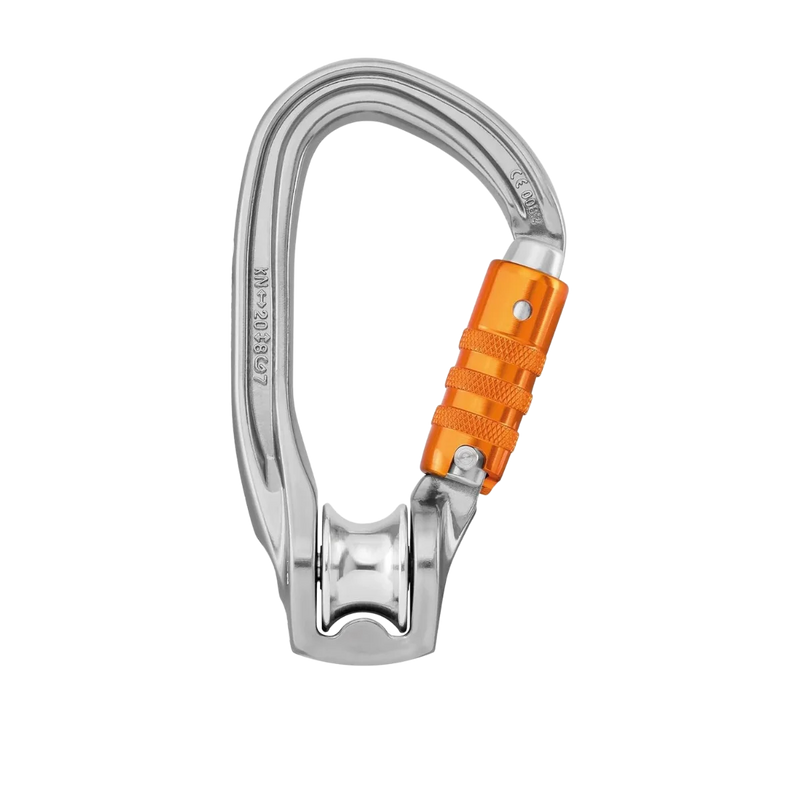

The Petzl PRO ROLLCLIP Z Pulley with TRIACT-LOCK combines a high-efficiency pulley and an auto-locking carabiner in one device. Designed for professional rescue, rope access, and hauling systems, it allows quick, secure integration into load transfer setups while ensuring smooth rope movement and enhanced safety.

Product Specifications

  • Brand: Petzl
  • Model: PRO ROLLCLIP Z (P74 TL)
  • Lock Type: TRIACT-LOCK (automatic locking system)
  • Material: Aluminum
  • Pulley Type: Integrated sheave with sealed ball bearings
  • Sheave Diameter: 18 mm
  • Rope Compatibility: 7–13 mm
  • Efficiency: 85%
  • Major Axis Strength: 20 kN
  • Minor Axis Strength: 8 kN
  • Open Gate Strength: 7 kN
  • Gate Opening: 22 mm
  • Certification: CE EN 12275, EN 12278, UIAA
  • Orientation: Pulley opposite the gate for direct system integration

Key Features

Pulley and Carabiner in One Tool: Combines a high-performance pulley with a locking connector to simplify system setup and reduce weight.
TRIACT-LOCK Automatic Safety: Triple-action gate mechanism prevents accidental opening while allowing fast, secure operation.
Optimized for Hauling Systems: Pulley positioned opposite the gate enables efficient rope direction in mechanical advantage setups.
High-Efficiency Ball Bearings: Achieves 85% efficiency, minimizing friction during load hauling or redirection.
Durable Professional Construction: Made from lightweight aluminum for strength and reliability in industrial and rescue environments.

How It Works

The Petzl PRO ROLLCLIP Z TRIACT-LOCK integrates directly into rope systems to streamline hauling or tensioning operations. The pulley’s sealed ball bearings allow smooth, efficient rope movement, reducing manual effort. Its TRIACT-LOCK system opens with a simple triple-action motion (lift, twist, push), ensuring safety and ease of use even with gloves. The Z configuration—pulley opposite the gate—lets users attach it directly to anchors or loads for optimal rope alignment in professional rope access or rescue applications.

FAQs

What’s the difference between the ROLLCLIP Z and ROLLCLIP A?

The Z version has the pulley opposite the gate for directional efficiency, while the A version aligns the pulley with the gate for easier rope clipping.

Is this model rated for rescue or industrial work?

Yes, it’s CE, EN, and UIAA certified for professional rope access, rescue, and rigging use.

Can it be used for hauling heavy loads?

Yes, with a 20 kN major-axis rating and 85% pulley efficiency, it’s ideal for hauling and load transfer systems.

Does it work with all rope types?

It’s compatible with static and semi-static ropes between 7 mm and 13 mm in diameter.
