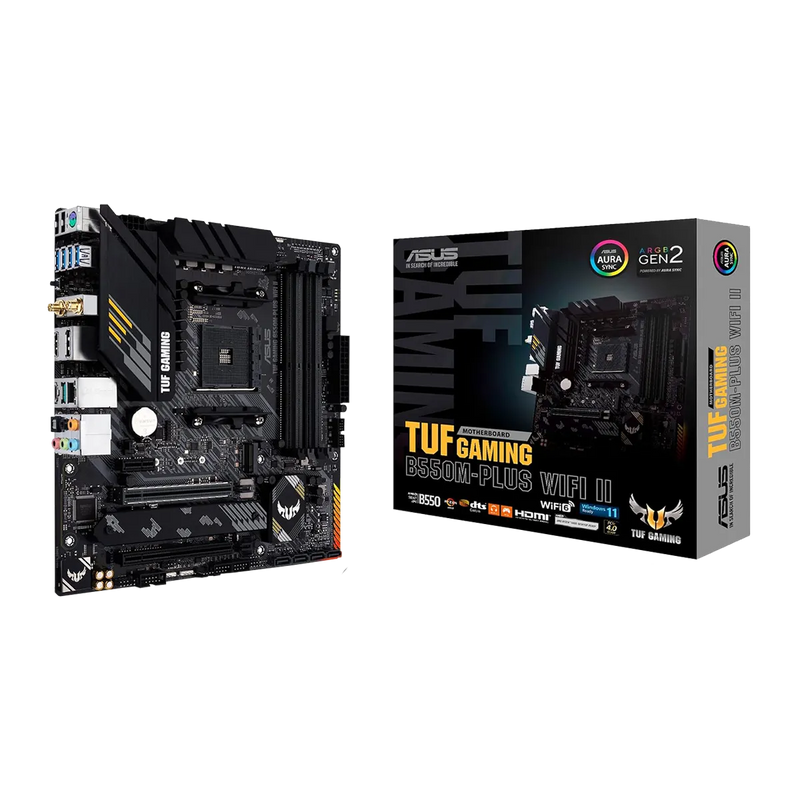

ASUS TUF GAMING B550M-PLUS WiFi II is a robust AMD AM4 microATX motherboard designed for 3rd Gen Ryzen processors. It features PCIe 4.0, WiFi 6, and ultra-fast 2.5Gb LAN for seamless connectivity. Enjoy advanced cooling, BIOS FlashBack, and vibrant RGB lighting control with AURA Sync.

Product Specifications:

• Socket: AMD AM4 (3rd Gen Ryzen)
• Chipset: AMD B550
• Memory Support: Up to 128GB DDR4 (4400MHz OC)
• Expansion Slots: PCIe 4.0 x16, PCIe 3.0 x16, PCIe 3.0 x1
• Storage: 2x M.2 slots, 6x SATA 6Gb/s ports
• USB Ports: USB 3.2 Gen 2 Type-A & Type-C
• Display Output: HDMI 2.1, DisplayPort 1.2
• Networking: Intel WiFi 6, 2.5Gb Ethernet
• Audio: Realtek S1200A 7.1-channel HD audio

Key Features:

Enhanced Power Solution: Features military-grade components and ProCool sockets for stable power delivery during intense gaming and overclocking.
Advanced Cooling Design: Includes VRM heatsinks, hybrid fan headers, and Fan Xpert 2+ to keep system temperatures under control.
AI Noise-Canceling Microphone: Built-in AI noise-canceling technology reduces background noise for clear voice communication in gaming and streaming.
Addressable Gen 2 RGB Headers: Supports advanced lighting control and customization with AURA Sync across compatible devices and peripherals.
BIOS FlashBack Support: Update the BIOS easily without needing a CPU or memory installed, ideal for quick firmware upgrades.

How it works:

The ASUS TUF GAMING B550M-PLUS WiFi II works by pairing seamlessly with AMD Ryzen 3rd Gen processors to deliver stable performance for gaming and multitasking. Its PCIe 4.0 slot allows fast GPU and SSD connections. Built-in WiFi 6 and 2.5Gb LAN provide ultra-fast internet connectivity. Advanced cooling components regulate heat during demanding tasks. BIOS FlashBack makes firmware updates simple, and customizable RGB headers let you personalize your system lighting with AURA Sync.

FAQs:

Can this motherboard support Ryzen 5000 series CPUs?

Yes, with a BIOS update, it supports Ryzen 5000 series processors.

Does it come with a pre-installed I/O shield?

Yes, the motherboard includes a pre-mounted I/O shield for easier installation.

Can I connect multiple RGB devices to this motherboard?

Yes, it has multiple addressable Gen 2 RGB headers for connecting and syncing several RGB components.

Is there onboard Bluetooth support?

Yes, it comes with integrated Bluetooth 5.1.
