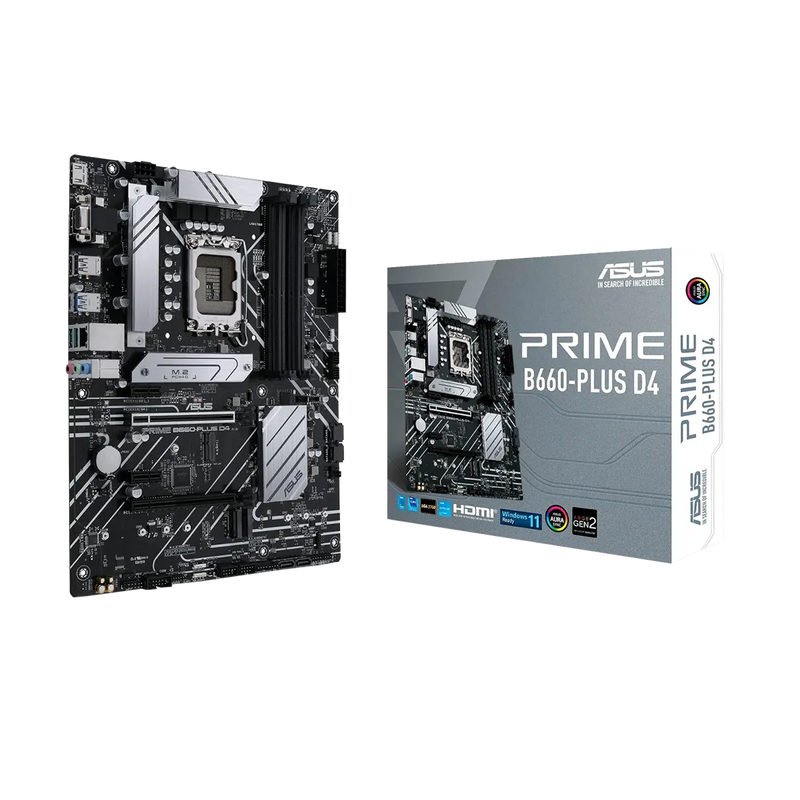

The ASUS Prime B660-PLUS D4 ATX Motherboard is built for Intel 12th Gen processors on the LGA 1700 socket. It features PCIe 4.0, DDR4 support, and triple M.2 slots for ultra-fast storage. With 2.5Gb LAN, USB 3.2 Gen 2x2 Type-C, and Thunderbolt 4 header support, it’s made for high-performance builds.

Product Specifications:

• Socket: LGA 1700 (Intel 12th Gen)
• Chipset: Intel B660
• Memory Support: DDR4 (up to 5333 MHz OC)
• Expansion: PCIe 4.0 support
• Storage: 3x M.2 slots, 4x SATA 6Gb/s
• LAN: 2.5Gb Ethernet
• Rear I/O: USB 3.2 Gen 2x2 Type-C, multiple USB 3.2/2.0 ports
• Front I/O: USB 3.2 Gen 1 Type-C support
• Thunderbolt: Header for Thunderbolt 4 support

Key Features:

Triple M.2 Slots: Allows multiple ultra-fast NVMe SSDs for rapid data access and gaming performance.
2.5Gb Ethernet: Provides high-speed, stable networking for smooth gaming and heavy downloads.
PCIe 4.0 Ready: Supports next-gen graphics cards and storage devices for faster transfer speeds.
Advanced USB Connectivity: Rear USB 3.2 Gen 2x2 Type-C and front USB 3.2 Gen 1 Type-C deliver quick data transfer and easy device access.
Thunderbolt 4 Header Support: Enables connectivity to high-speed external devices and docking stations for future-proof builds.

How it works:

The ASUS Prime B660-PLUS D4 motherboard powers Intel 12th Gen processors through the LGA 1700 socket. Users can install up to three M.2 drives for fast storage and use PCIe 4.0 for top-tier GPU and SSD performance. With 2.5Gb LAN, users enjoy ultra-fast wired networking. The board includes advanced USB options and a Thunderbolt 4 header for expansion. BIOS and ASUS AI features help tune system performance easily.

FAQs:

Does it support DDR5 RAM?

No, this motherboard supports DDR4 memory only, up to 5333 MHz OC.

Can I use this motherboard for overclocking?

No, B660 chipset doesn’t support CPU overclocking, but memory overclocking is supported.

Does it have integrated WiFi?

No, the Prime B660-PLUS D4 does not have onboard WiFi but supports WiFi cards via PCIe.

Is BIOS update required for Intel 13th Gen processors?

Yes, a BIOS update may be required for 13th Gen CPU compatibility. Check ASUS official support for updates.
